GX-F Series Fiber

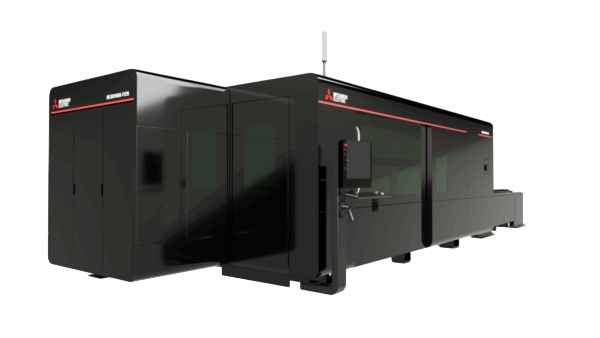

The new GX-F Advanced Plus is the latest addition to the tried and true GX-F line. The GX-F series delivers Mitsubishi’s legendary reliability with the reduced setup time and lower operating costs of a fiber. The new Plus model packs updated features on top of the popular innovations seen in the GX-F Advanced.

• Automatic Nozzle Centering – First model with this feature. Mits never wanted it because such systems typically reside in the head and are prone to damage after a crash. Mits engineers in Japan developed an improved system located on the machine, not the head. Fabtech visitors were impressed. The system can be automatically triggered after a head crash, nozzle change, shift change, you name it.
• Improved Height Sensing – With automatic crash avoidance from ¼” to 1”. Mitsubishi calls it “Direct Sense”.
• Improved AR Feature – Now easier than ever to nest parts on drop from the control. Regain the access and short run ease of the CO2’s open tables.
• Keeps the GX-F’s top features – AGR, improved AI Assist, Nozzle monitor.
• Available in 5′ x 10′ and 2m x 4m

Available Wattages 4kw to 20kw

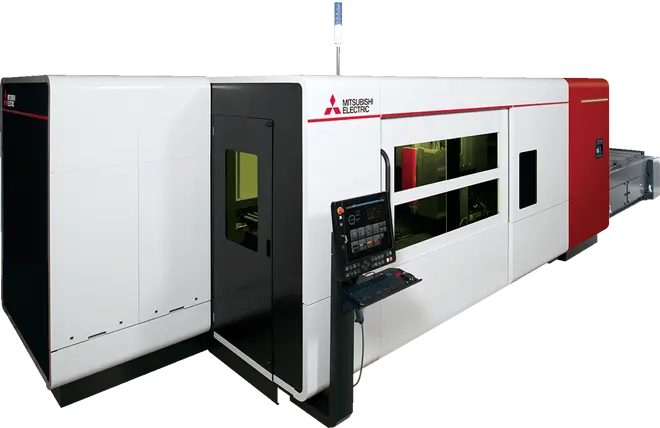

The GX-F Advanced uses excellent process monitoring and assist gas reduction technology to cut better parts with reduced operating costs. AGR and AI features deliver a better edge in challenging materials and more confidence running unattended. A true single source machine, Mits designed and built the GX-F Advanced from the ground up to be the new standard in fiber lasers.

• AI Assist – Audio and light sensors monitor processing and adjust cut conditions and speeds in real time.
• AI Nozzle Changer – Nozzle is automatically checked and changed if needed.
• Sliding Side Door – Easy access to the cutting table.
• Overhead Cameras – Easy to manipulate a part program on a piece of drop, Mits calls it “AR”.
• AGR – The Advanced and Plus models are plumbed for an air shroud via an optional low pressure compressor. AGR reduces N2 consumption by 1/3rd on carbon, over half on thick stainless. Other popular AGR cutting tools as well.
• Available in 5′ x 10′ and 2m x 4m

Available Wattages: 4kw to 20kw

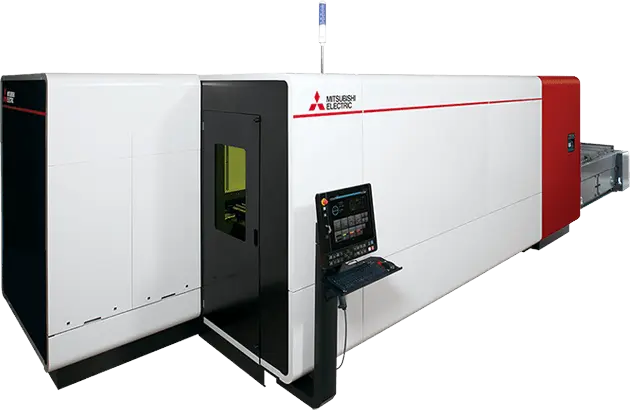

The GX-F is functionally the same laser as its Advanced counterparts, but in a simplified package. The same powerful zoom cutting head and single source fiber oscillator for shops that need a powerful and accurate laser.

• Single Source – Fiber oscillator (Mits one of the few to design and build their own), control, head, drive motors.
• Oscillator Innovations – High processing stability with superior beam-quality and consistency. Beam cleaning and anti-reflection technologies
• Fast – Same pierce times and feedrates as the 4kw & 6kw GX-F Advanced.
• Process Monitoring – Plasma, burn, and burst detection, window monitoring.
• Automation Ready – Same compatibility with existing and new Mits automation, best in the biz.
• Available 5′ x 10′ and 2m x 4m

Available Wattages: 4kw and 6kw
