Diamond BB

The Diamond BB series of compact and cost-efficient press brakes are the best choice for quick, quiet, high-quality bending.

Like all Diamond Brakes, the BB series features an AC servo motor driven ball screw mechanism for high-speed productivity and repeatability (± 0.001mm). Diamond’s designers introduced the world’s first electric press brake, and the BB series of press brakes is their latest answer for reliable and accurate repeat bending work.

Diamond brakes can be configured with clamping for any tooling type. Use your existing tooling in a Diamond Brake.

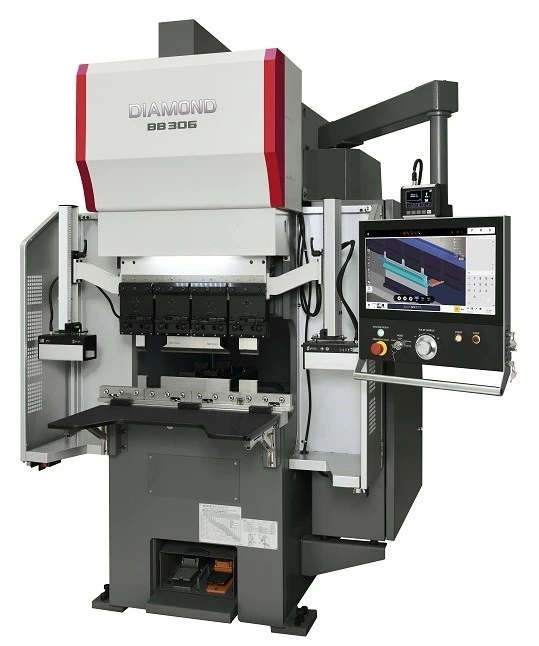

Diamond BB 306

While most shops need the capacity to bend longer parts, the majority of jobs could fit on a 2′ bed. Make these frequent jobs easier with the unrivaled speed, accuracy, and ease of use of the BB306. Ergonomic features and the Diamond line’s intuitive controls and programing make this brake a favorite among seasoned operators.

Benefits:

  • All electric ball screw drive. Industry leading ram speed, precision, and repeatability. Ten times more accurate than high-end hydraulic machines.
  • 5-Axis Back Gauge (X’ standard, 6 axis option available).
  • One-touch Euro clamping, or use whatever tooling you already have.
  • 22″ windows based touch screen control.
  • Front support table.
  • Thickness sensing and correction standard.
  • Quiet and cost-efficient operation. No oil, pumps, or hydraulic upkeep. Customers go years between service calls

Specs:

  • Cycle Time: 2.1s
  • 1714 strokes per hour
  • 25″ bend length, 30 US ton
  • 6″ stroke, 17″ open height

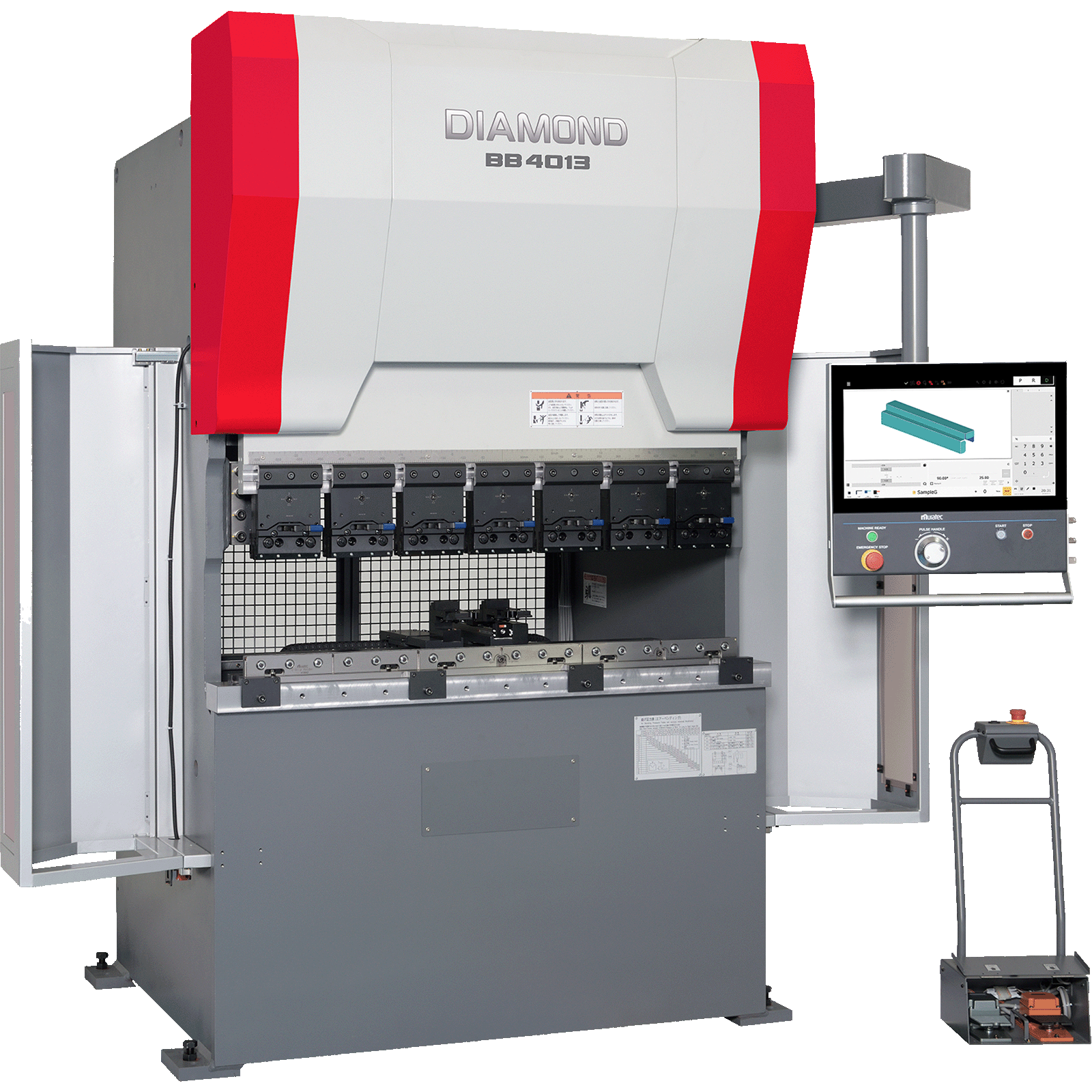

Diamond BB 4013

The BB4013 spans the gap between the small but mighty BB306 and the larger 6020 and BH series machines. This model is a great compliment to shops with larger brakes needing a machine for more precise and consistent parts.

Benefits:

  • All electric ball screw drive. Industry leading ram speed, precision, and repeatability. Ten times more accurate than high-end hydraulic machines.
  • Four axis backgauge (X, R, Z1, Z2), 19.7” X axis stroke, 25.6” gauge range.
  • 5th and 6th axis available as options for offset bends.
  • One-touch Euro clamping, or use whatever tooling you already have
  • Thickness sensing and correction standard.
  • 22″ windows based touch screen control.
  • Quiet and cost-efficient operation. No oil, pumps, or hydraulic upkeep. Customers go years between service calls.

Specs:

  • Cycle Time: 2.1s
  • 1714 strokes per hour
  • 40 US tons
  • Bending Length: 1260mm (50″)
  • Open height: 430mm (17″)
  • Ram Stroke: 150mm (6″)

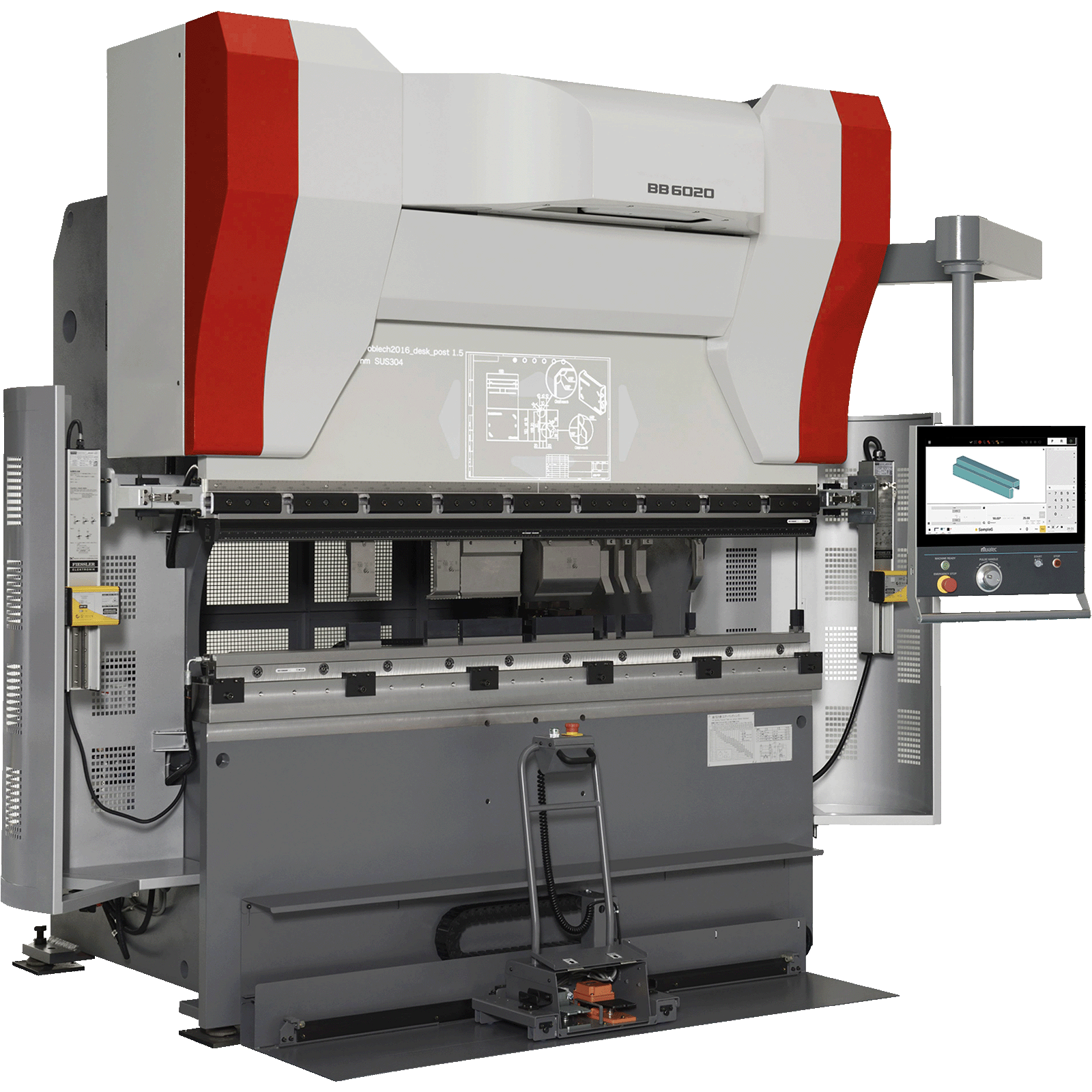

Diamond BB 6020

Along with the BH1353 (149 ton x 10′), the BB6020 is the most popular Diamond brake. A perfect blend of size and bending capacity, with all the benefits of an all-electric ball screw brake.

Benefits:

  • All electric ball screw drive. Industry leading ram speed, precision, and repeatability. Ten times more accurate than high-end hydraulic machines
  • Four axis backgauge, 19.7” X axis stroke, 25.6” gauge range
  • 5th and 6th axis available as options for offset bends.
  • Videre Operator Assistance available as an option, retrofittable.
  • Thickness sensing and correction standard
  • 22″ windows based touch screen control
  • Quiet and cost-efficient operation. No oil, pumps, or hydraulic upkeep. Customers go years between service calls

Specs

  • Cycle Time: 2.1s
  • 1714 strokes per hour
  • 60 US tons
  • Bending Length: 2100mm (83″)
  • Open height: 430mm (17″)
  • Ram Stroke: 150mm (6″)
